Domain Blocking On Pfsense

Posted By : Shailendra Singh Rathod | 28-Dec-2017

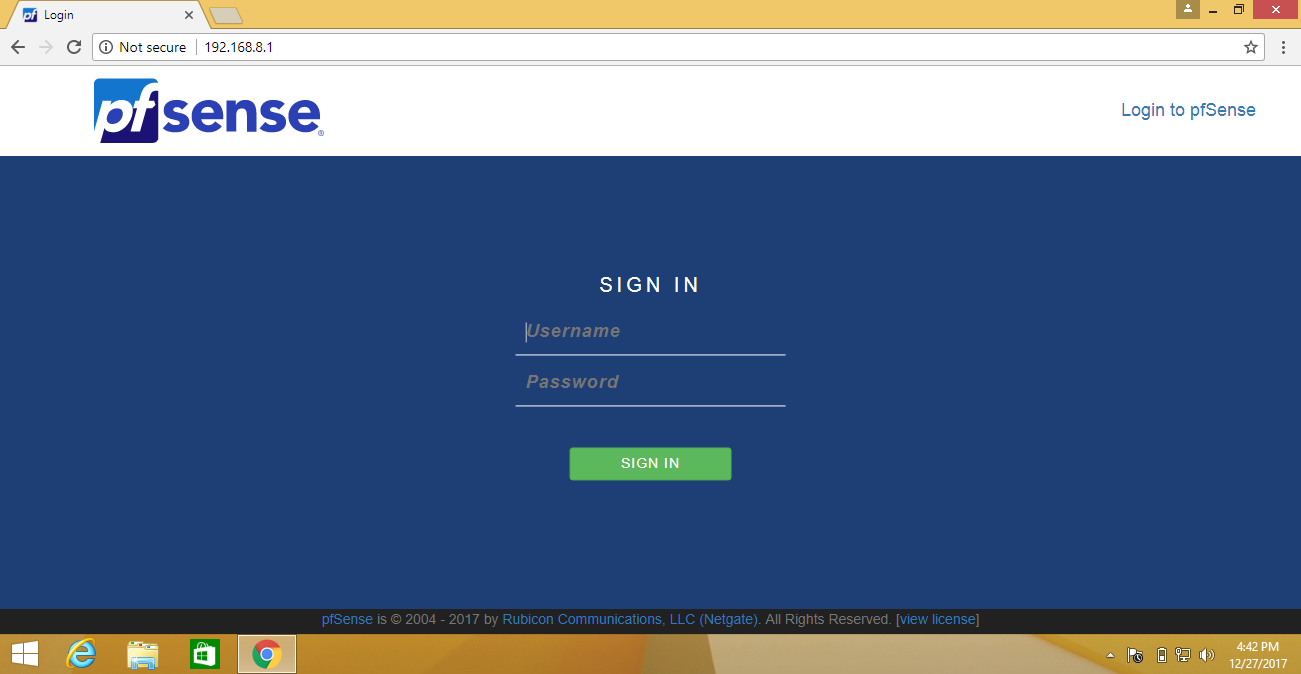

First, log in on Pfsense.

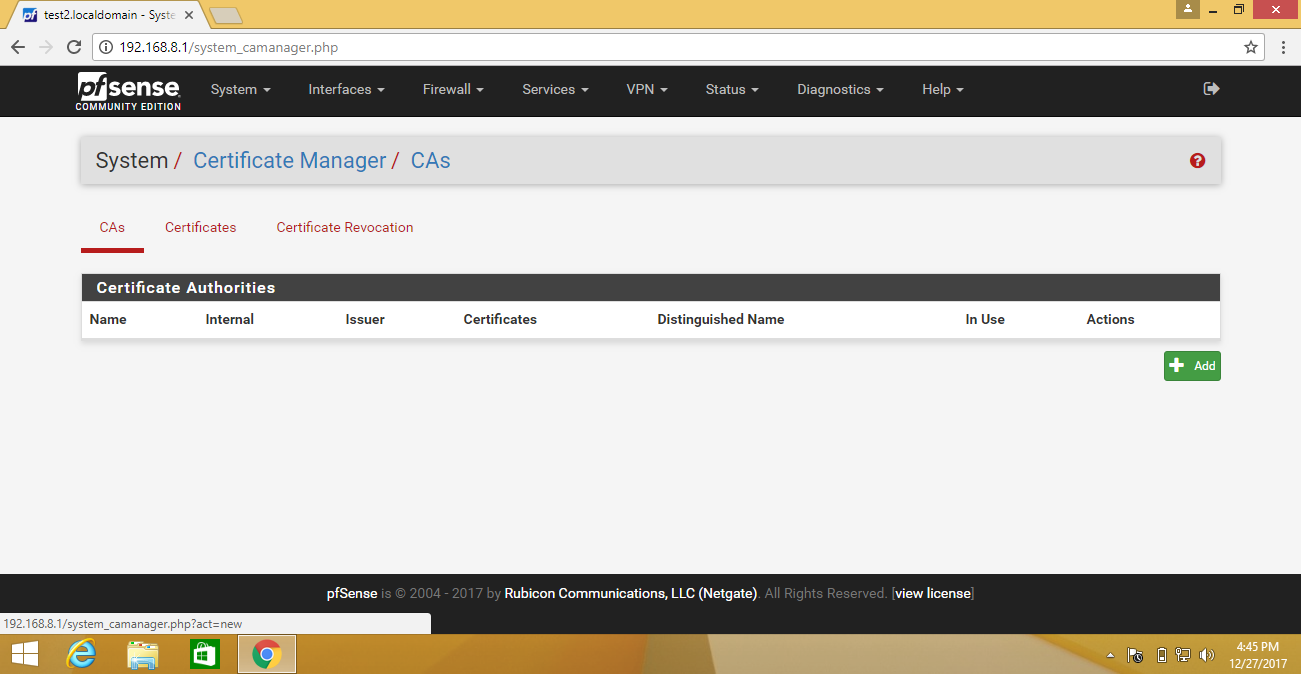

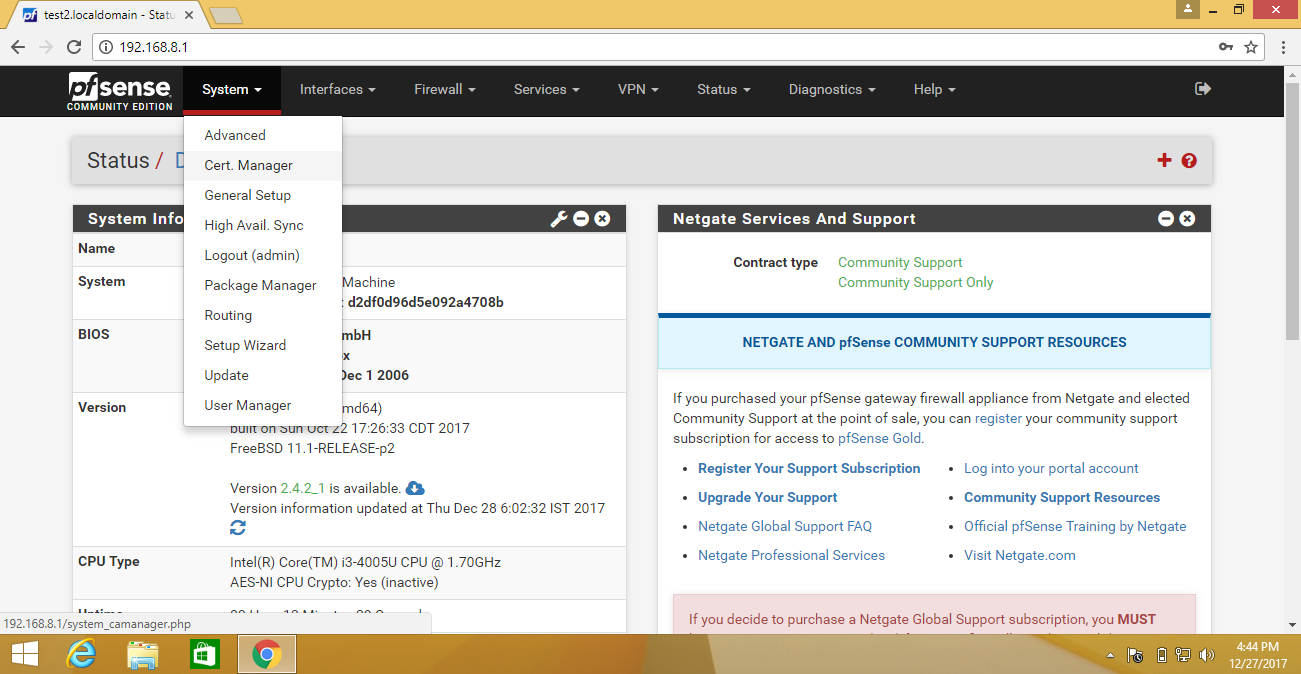

Then click System->Certificate Manager->CAs



First, add a new CA click on add tab

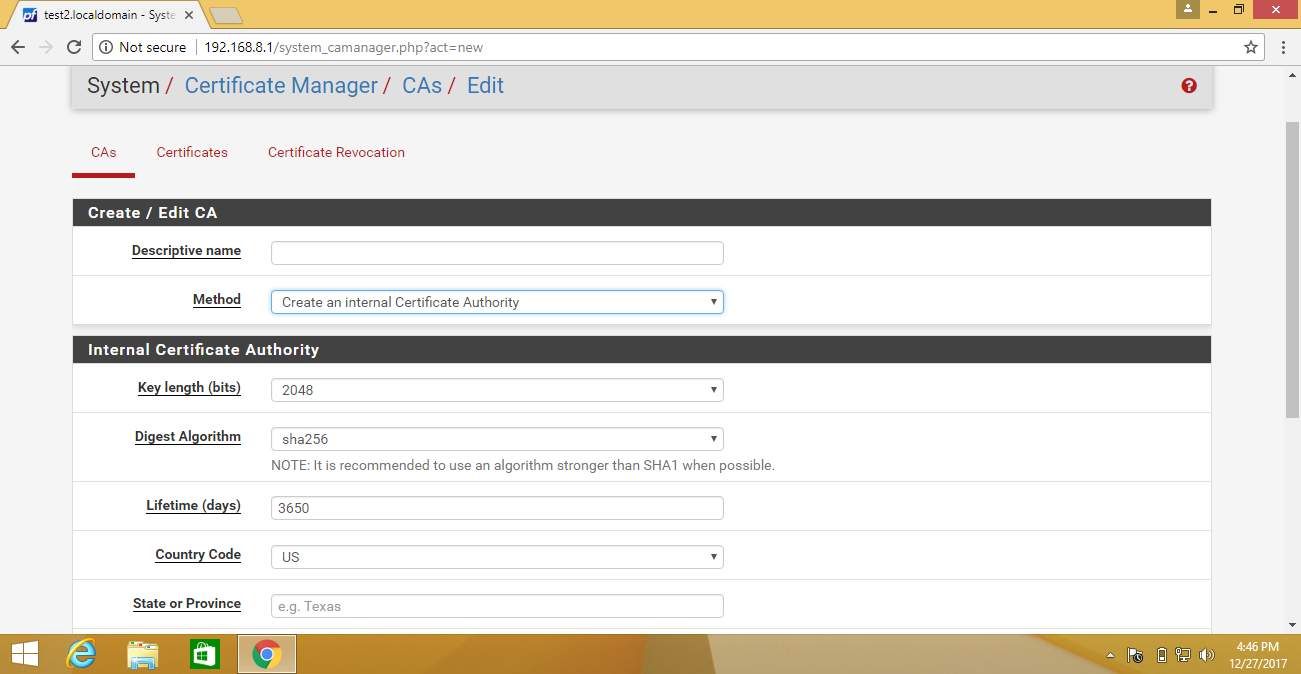

A new window open

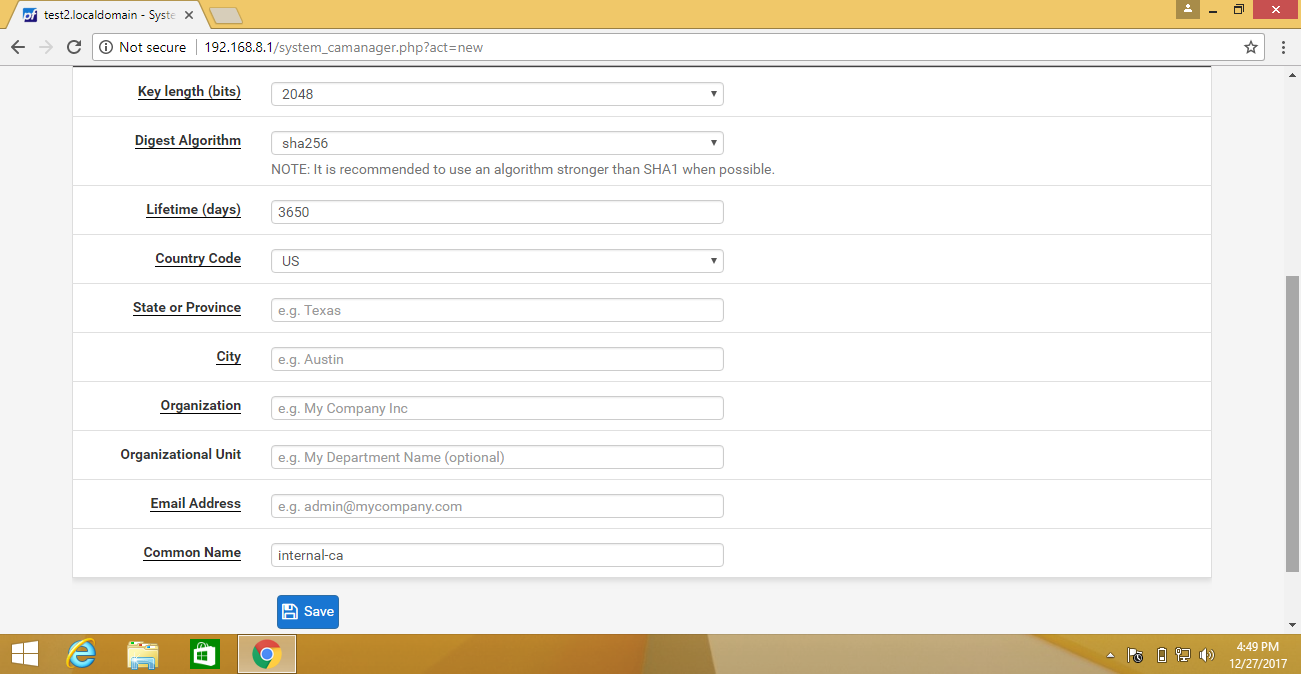

Type Descriptive Name, Method,  Key Length, Digest Algorithm, Lifetime, Country Code, State/Province, City, Organization, Organizational Unit (Which is optional), E-mail and Common Name.

And click on save.






Then click on System->Package Manager-> Available Packages

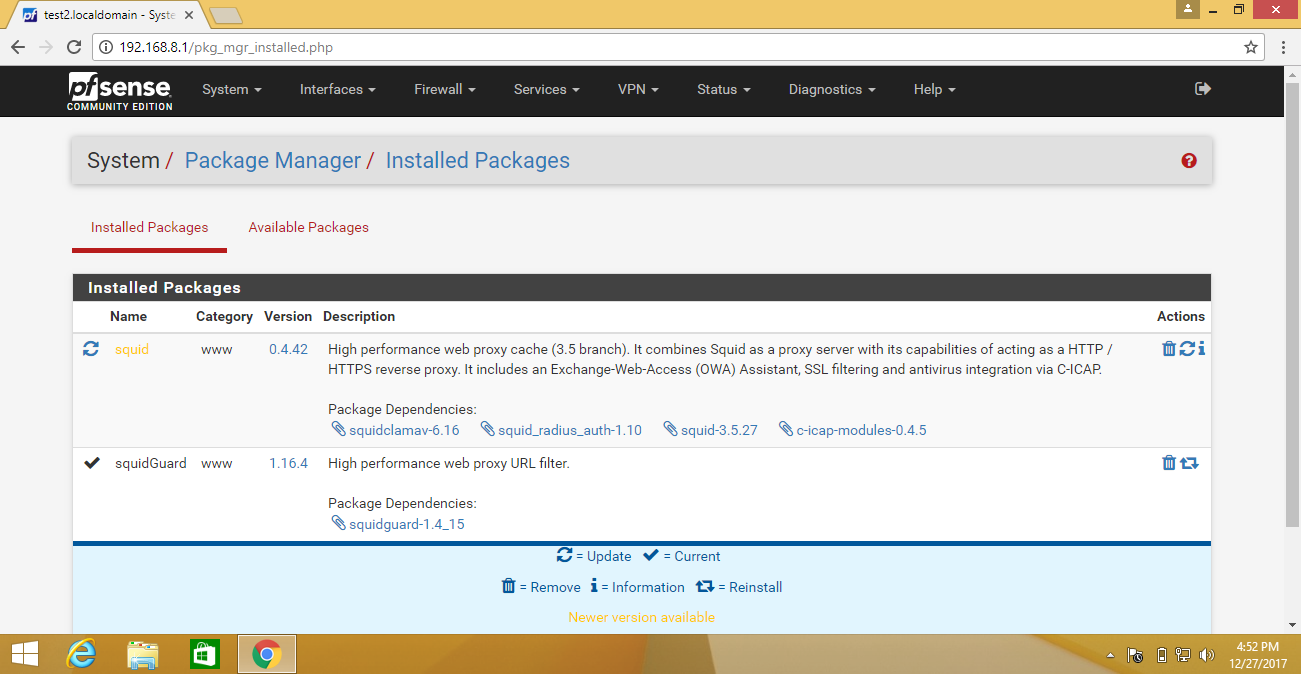

Search squid and squidGuard packages and click the install button and please wait while the installation of pfsense-pkg-squid and pfsense-pkg-squidGuard completes.

This may take several minutes. Do not leave and refresh the page

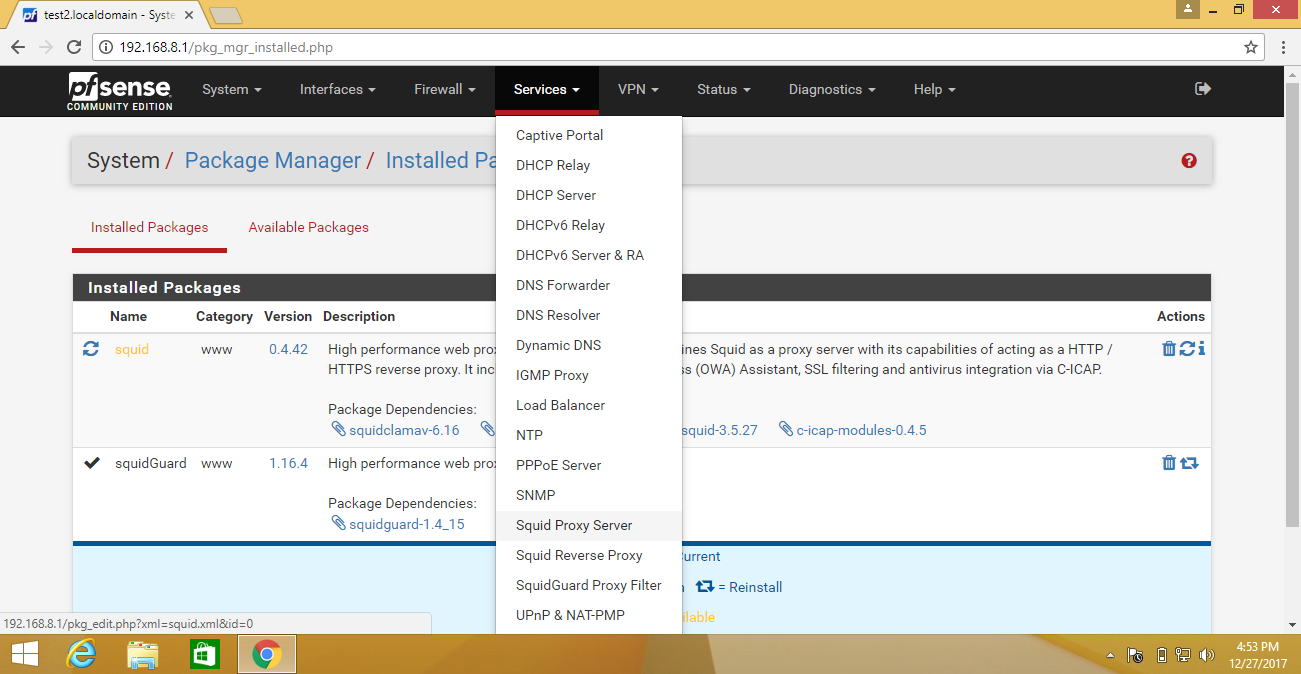

Now click on Services-> Squid Proxy Server

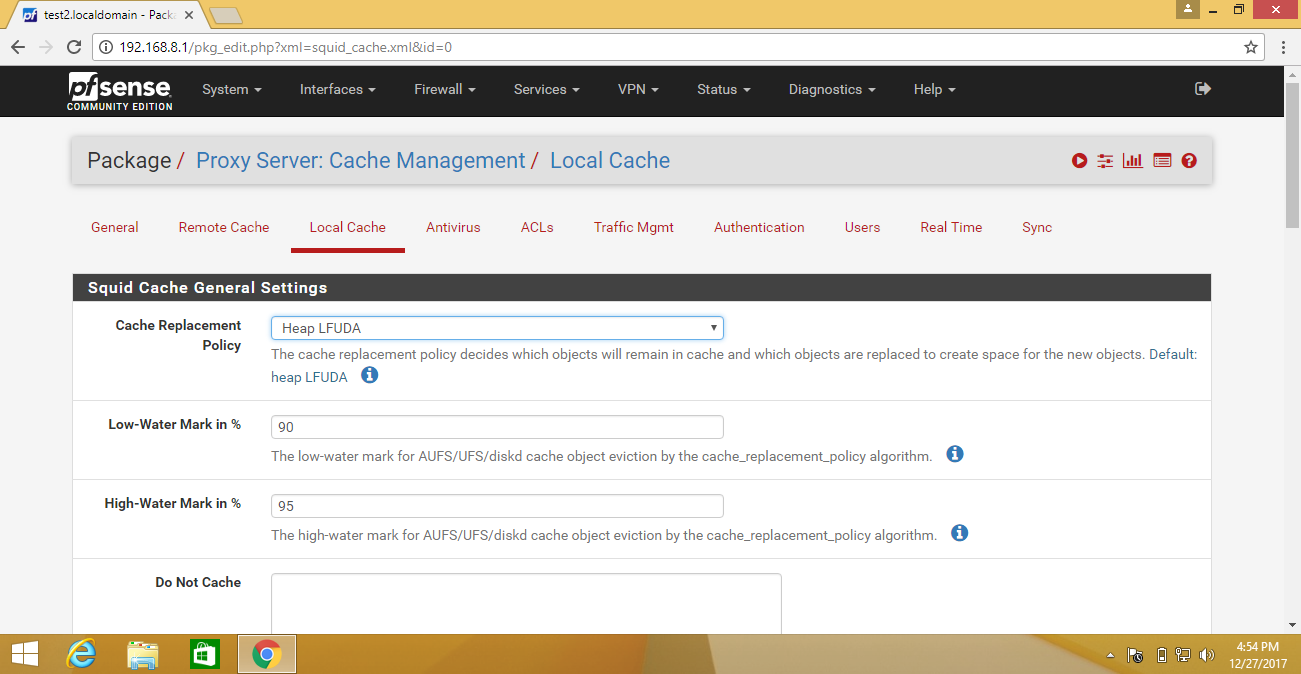

Then first configure Local Cache

Here you can increase  Hard Disk Cache Size (Which is Default 100MB) in Squid Hard Disk Cache Settings

And click on save.

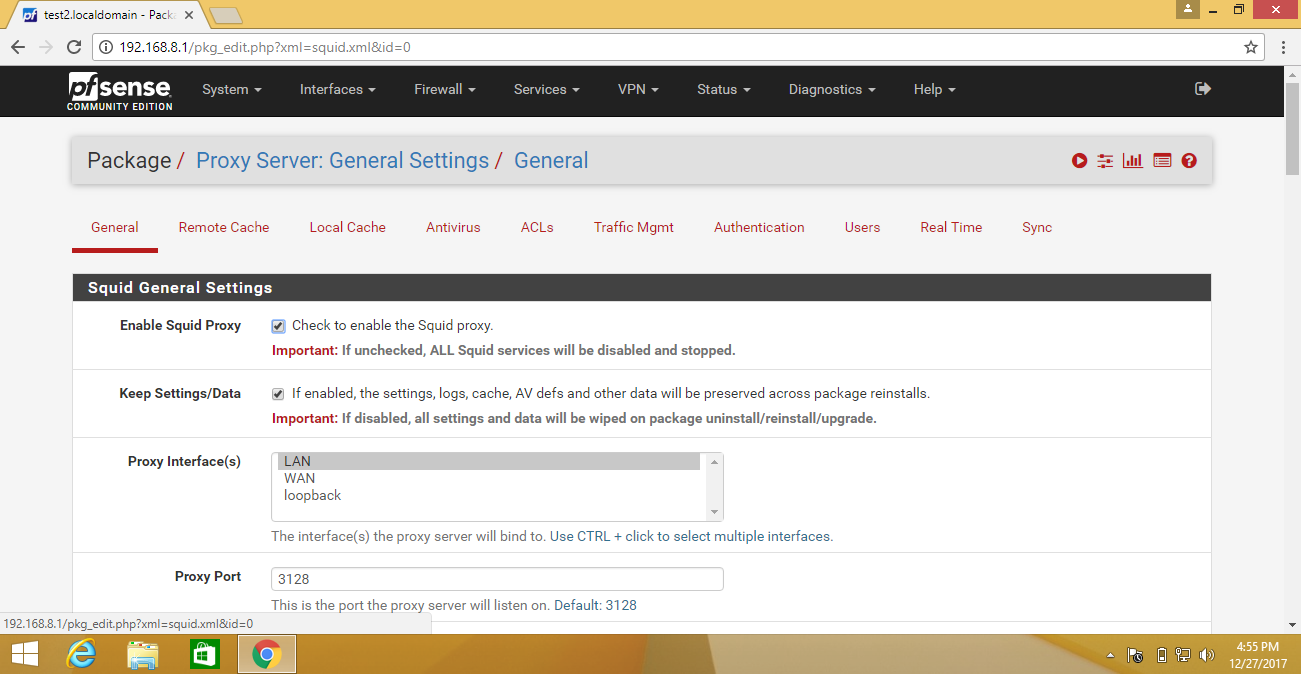

Now go to  Package/Proxy Server: General Settings/ General

Check to enable the Squid proxy.

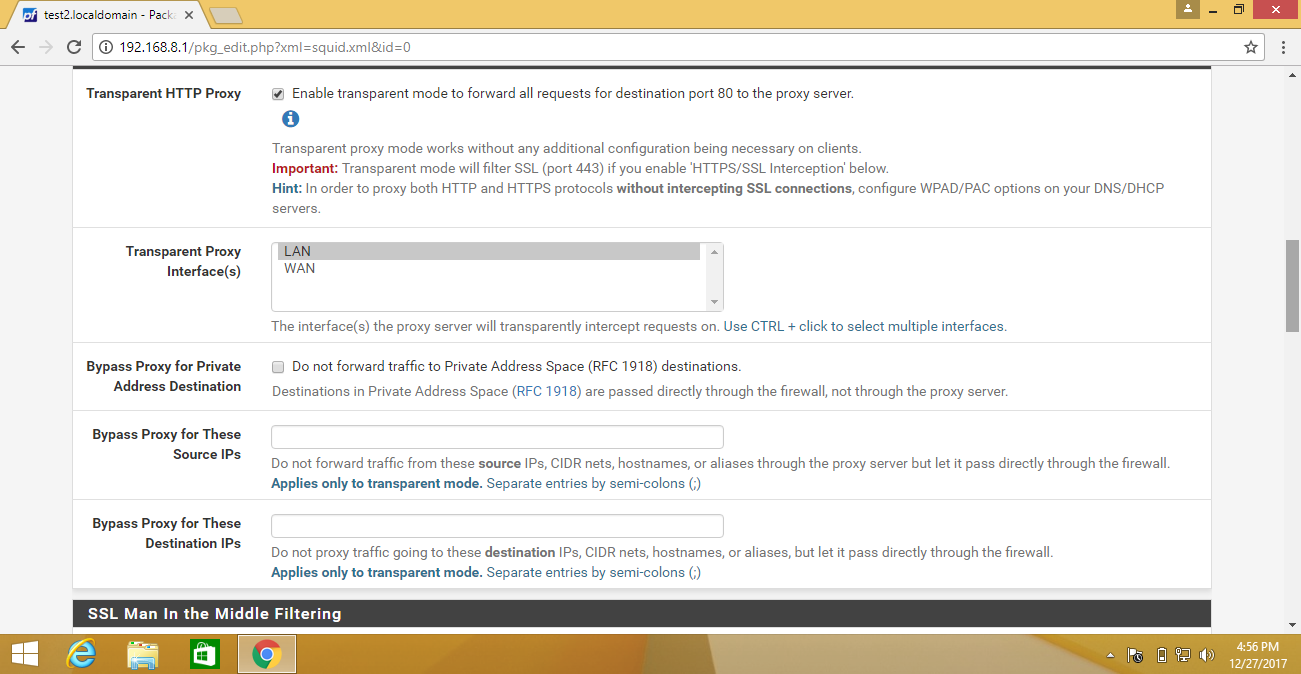

Now Enable transparent mode to forward all requests for destination port 80 to the proxy server in Transparent Proxy Settings.

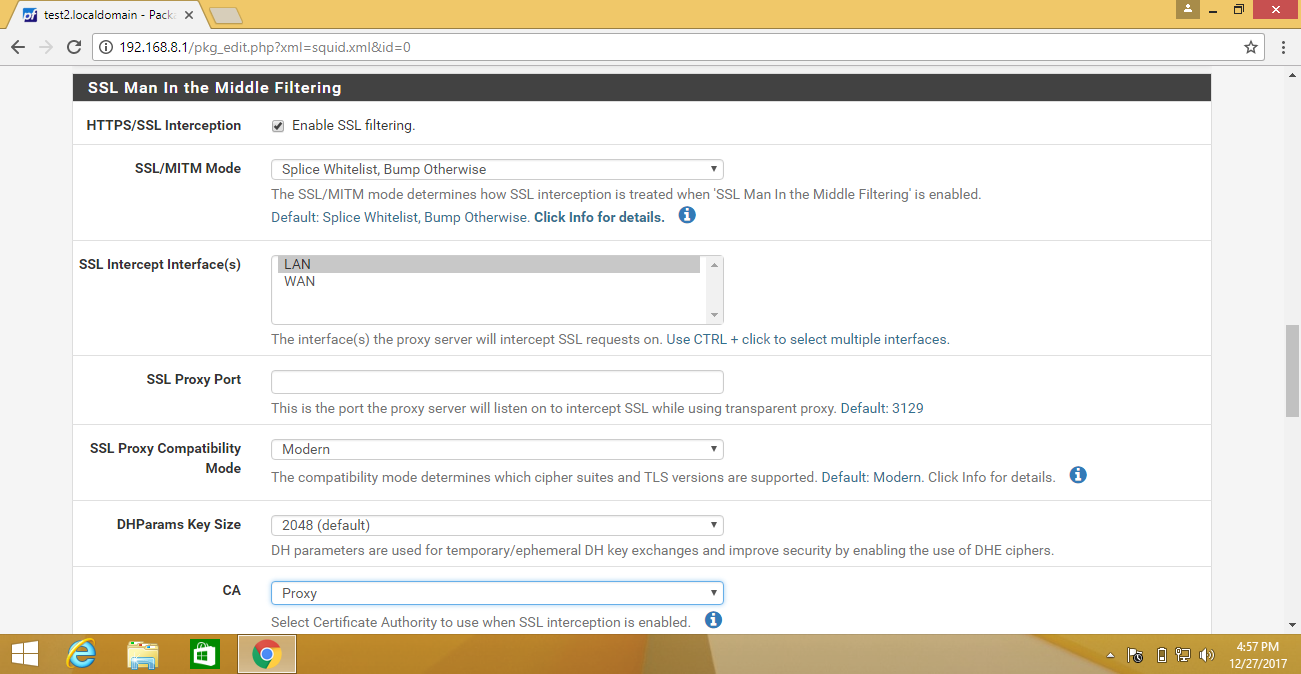

Then Enable SSL filtering in SSL Man In the Middle Filtering.

And select Certificate Authority to use when SSL interception is enabled.

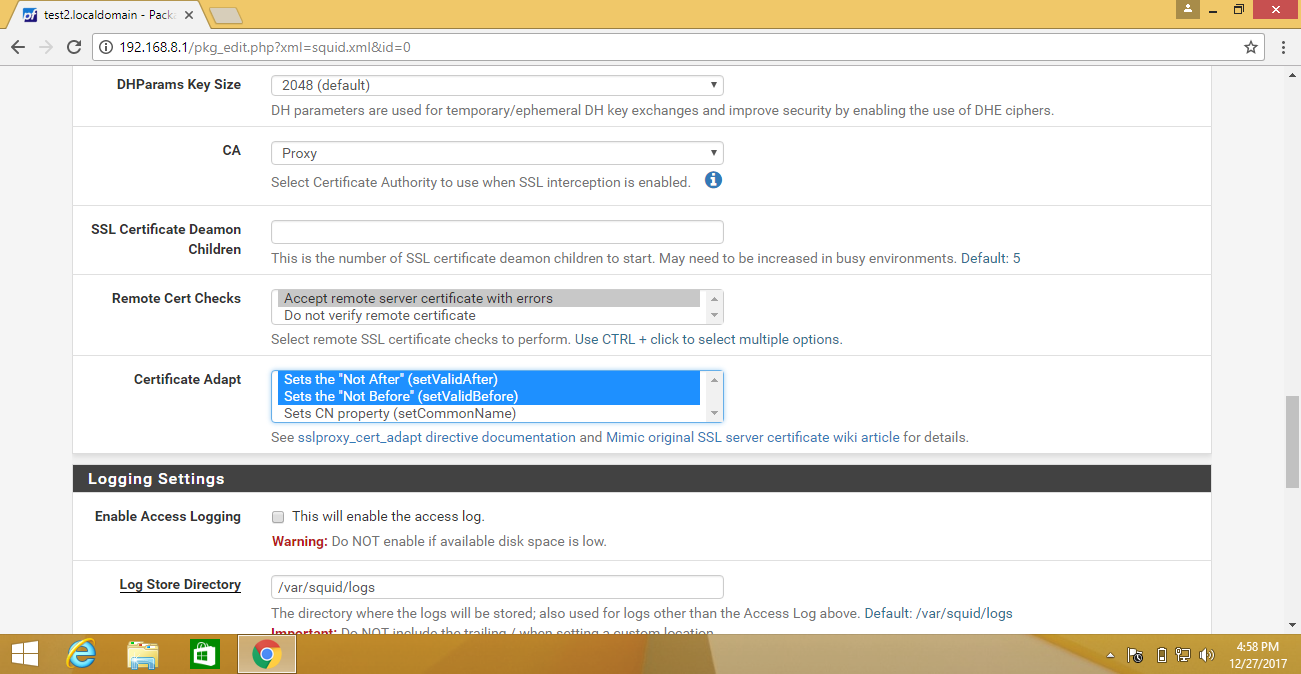

Select Accept remote server certificate with errors in Remote Cert Checks.

Now select Sets the “Not After” (Set Valid After)and Sets the “Not Before” (Set Valid Before) in Certificate Adapt

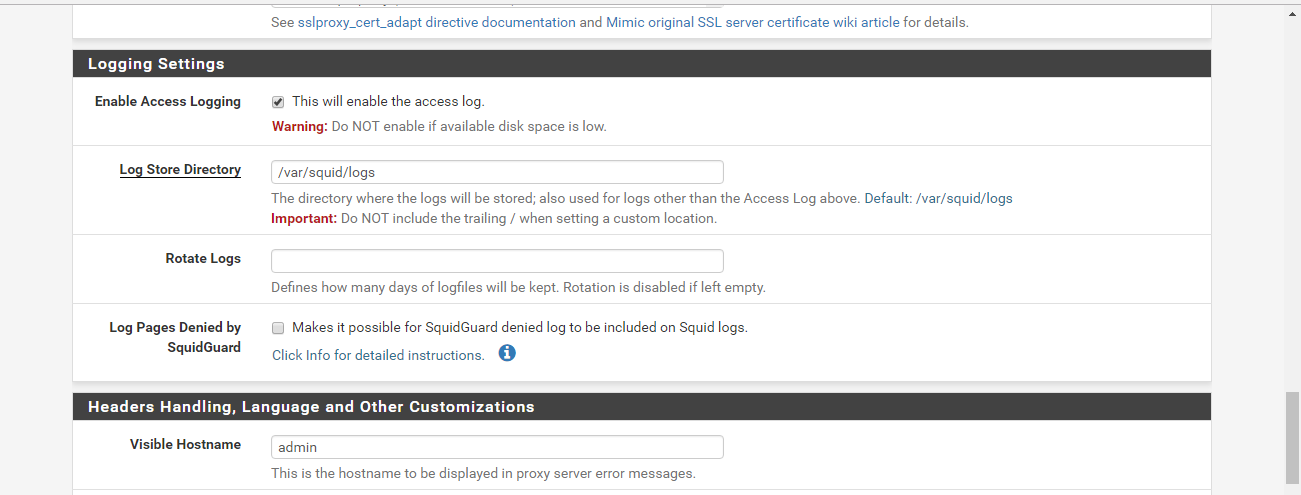

Then Enable Access Logging in Logging Settings

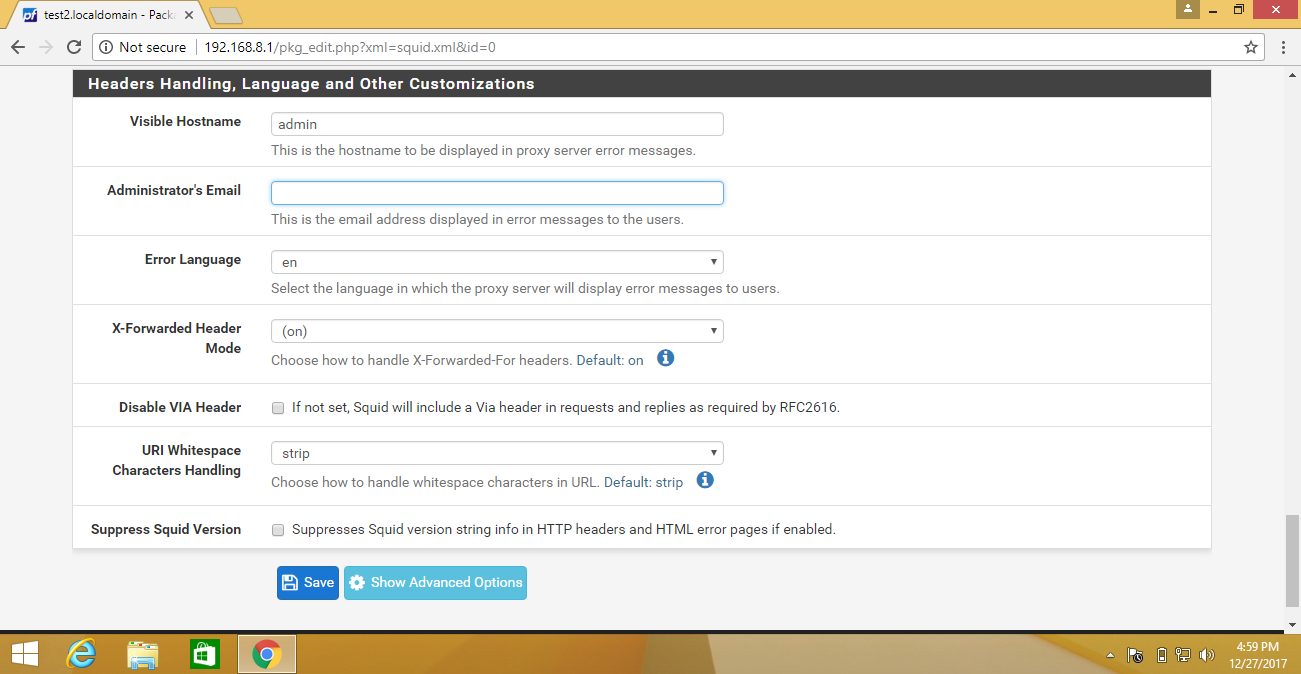

Now Type Visible Hostname and Administrator's Email in Headers Handling, Language, and Other Customizations

And save

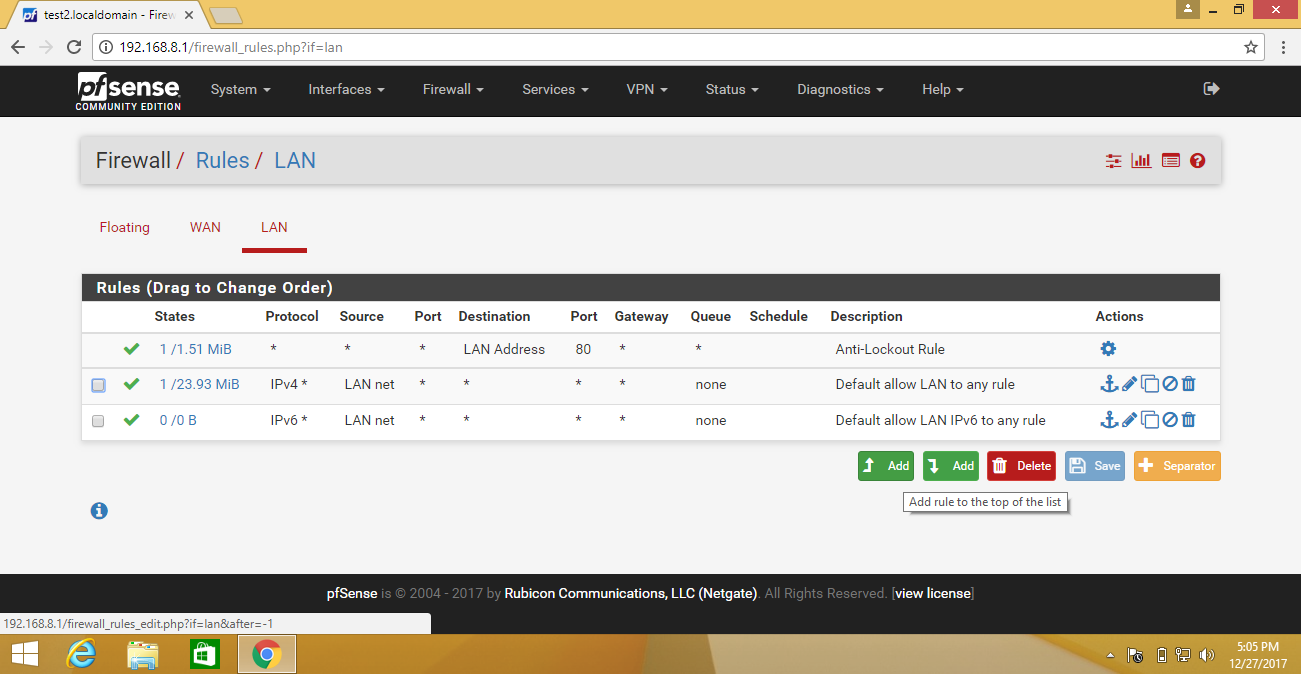

Now click on Firewall/Rules/LAN

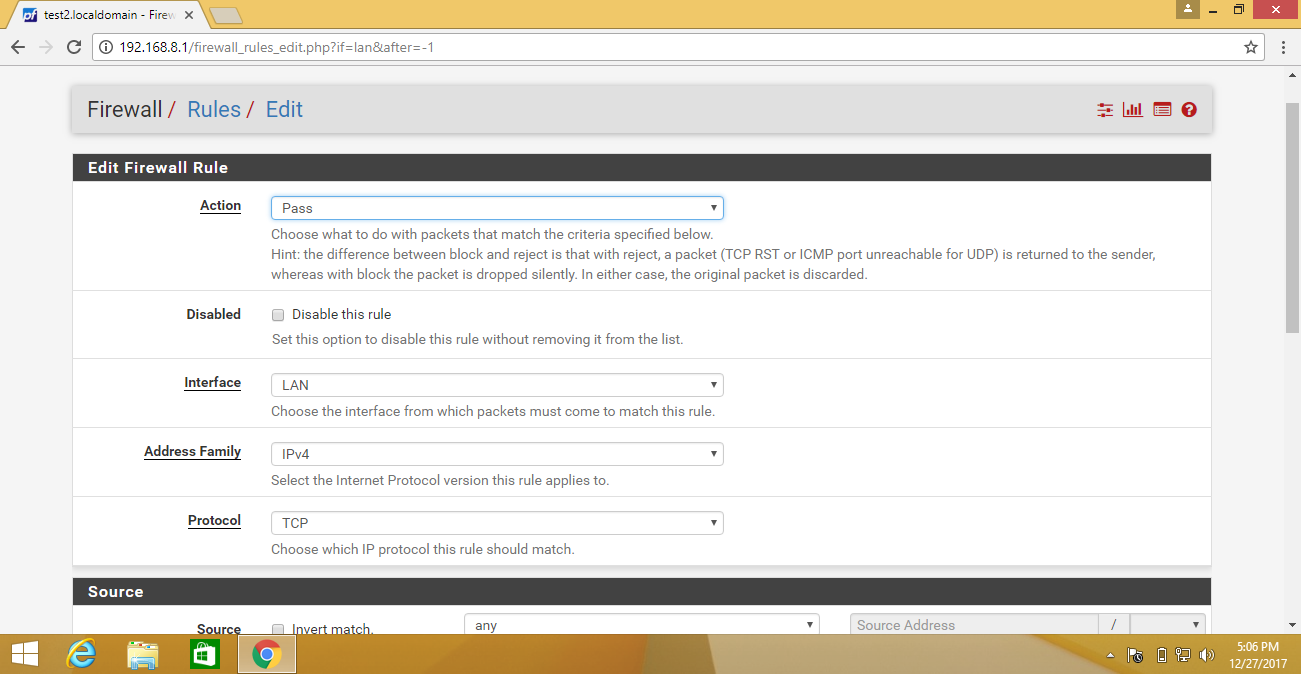

And create new rule so click on add

A new Tab open.

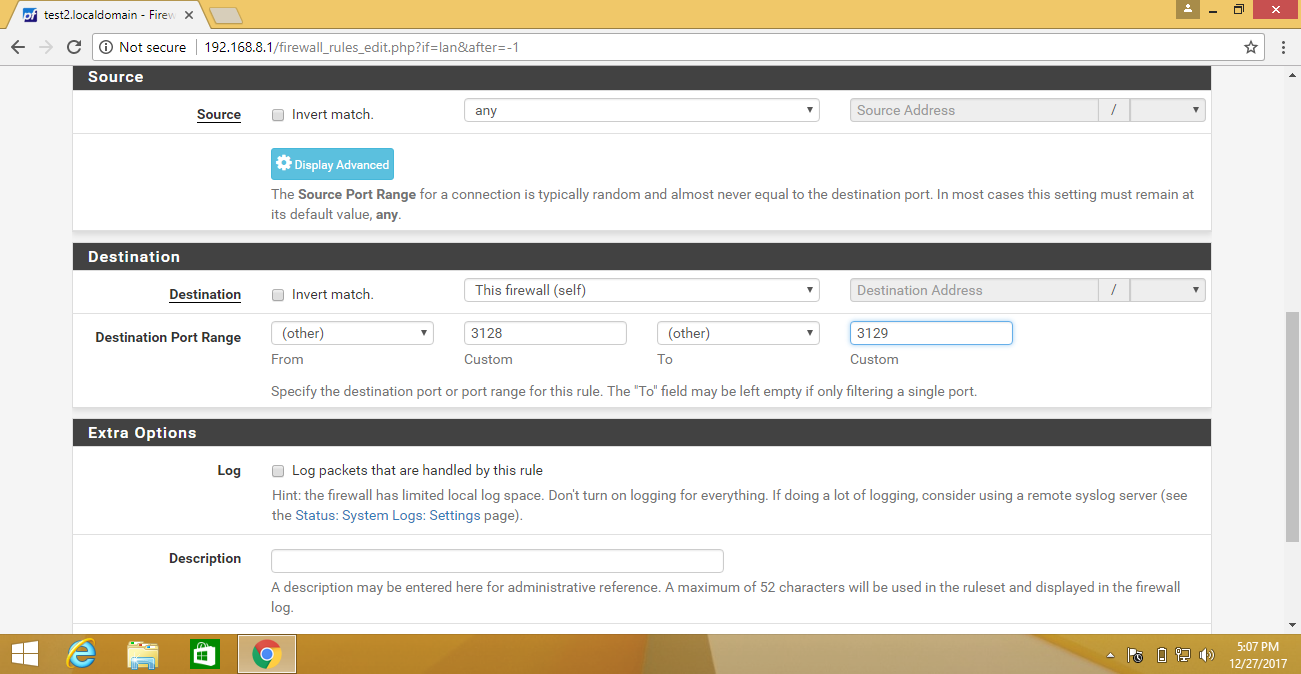

Now type firewall(self) in Destination and type 3128 and 3129 in Destination Port Range.

Then save and apply changes.






Now click on Services-> SquidGuard Proxy Filter

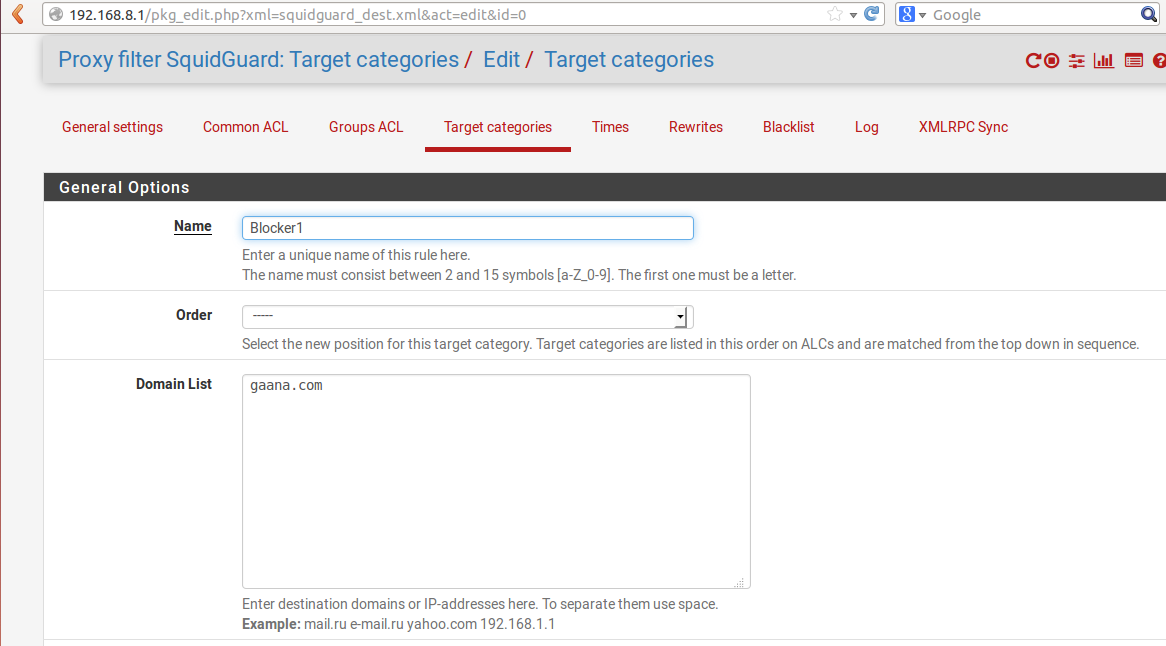

Now select Target categories in  Package / Proxy filter SquidGuard: Target categories / Target categories

Type Name, select order and type domain which you want to block.

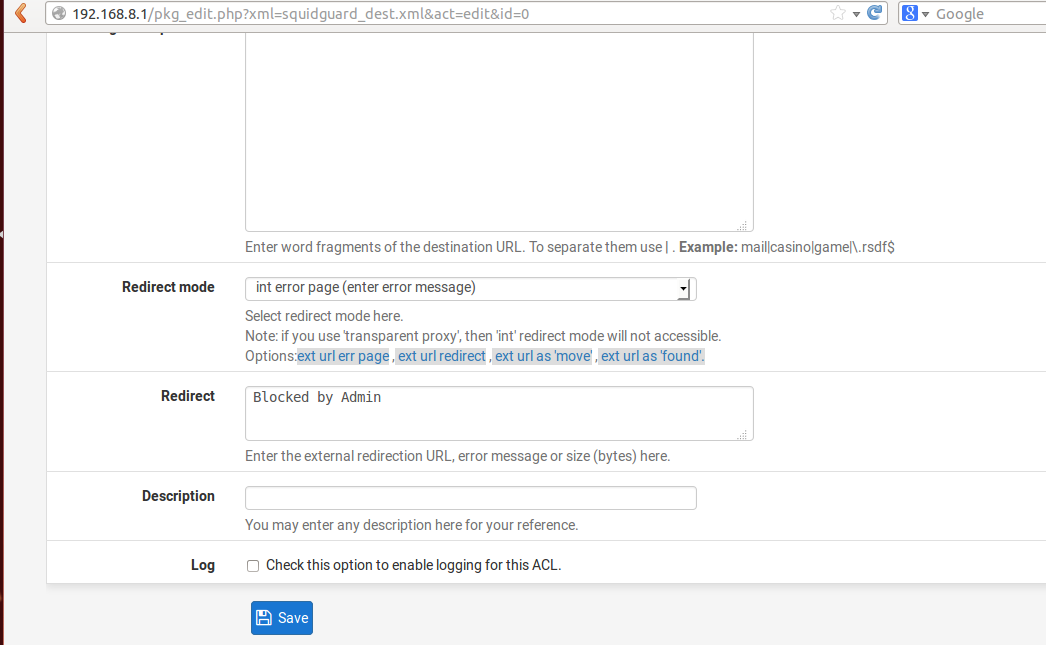

Then select redirect mode and type error message in the redirect.

And save

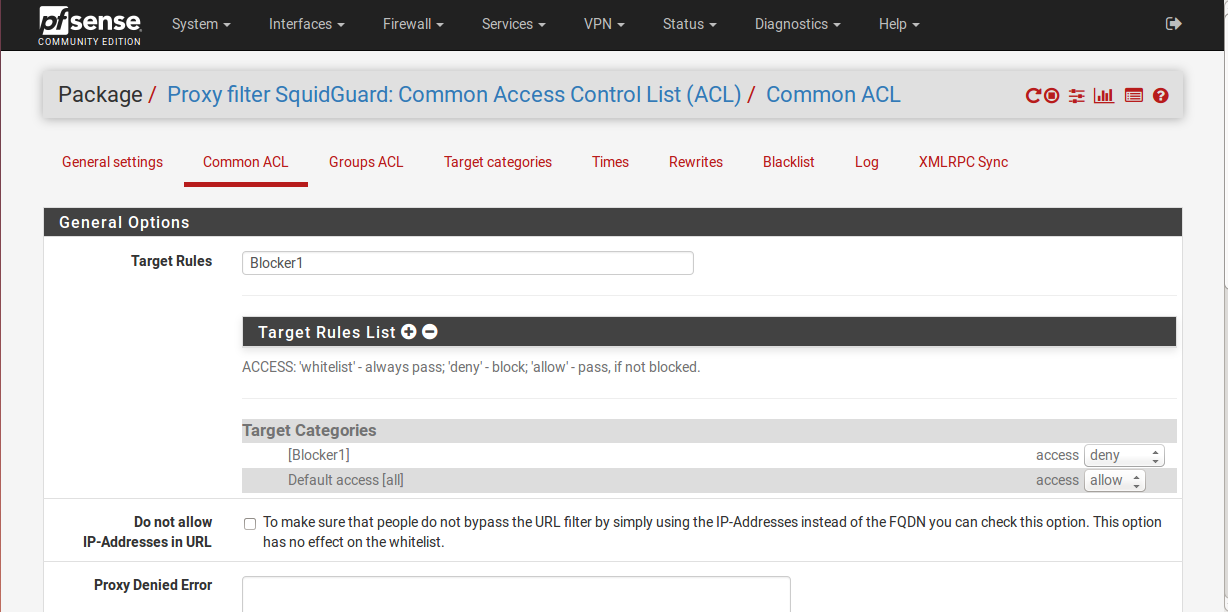

Now select Common ACL in Package / Proxy filter SquidGuard: Common Access Control List (ACL) / Common ACL.

In General Options

Type name of Target Rules and select Target Rules List

And allow/deny in Target Categories.

And save.

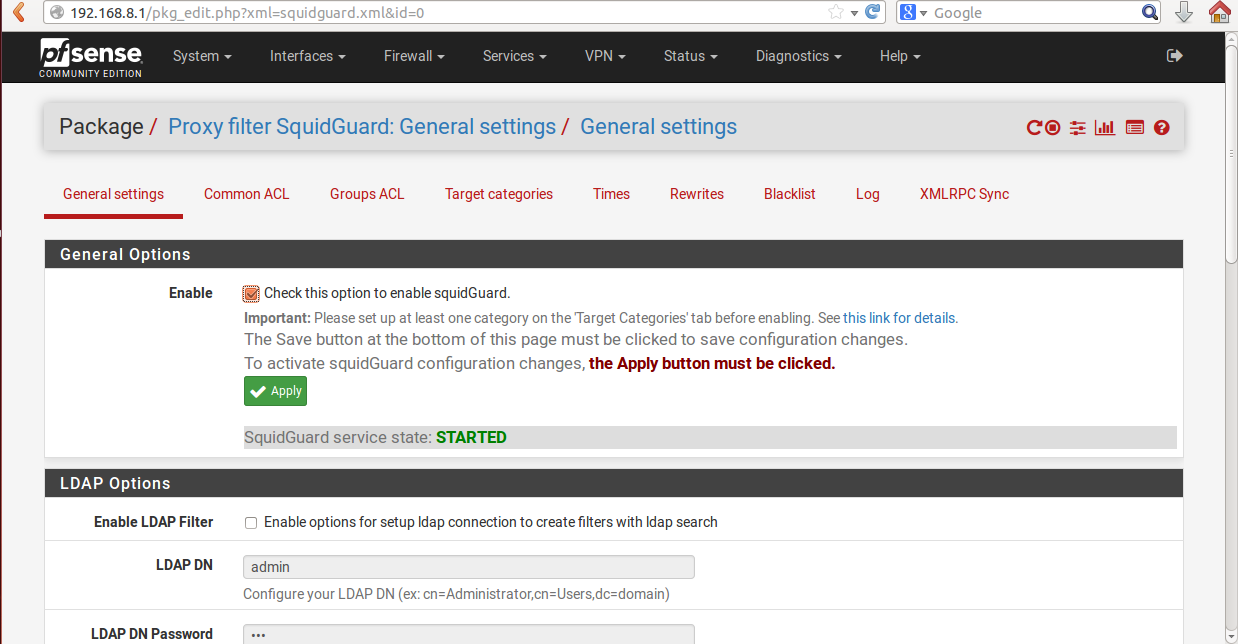

Now select General settings in Package / Proxy filter SquidGuard: General settings / General settings




Check this option to enable squidGuard and apply.

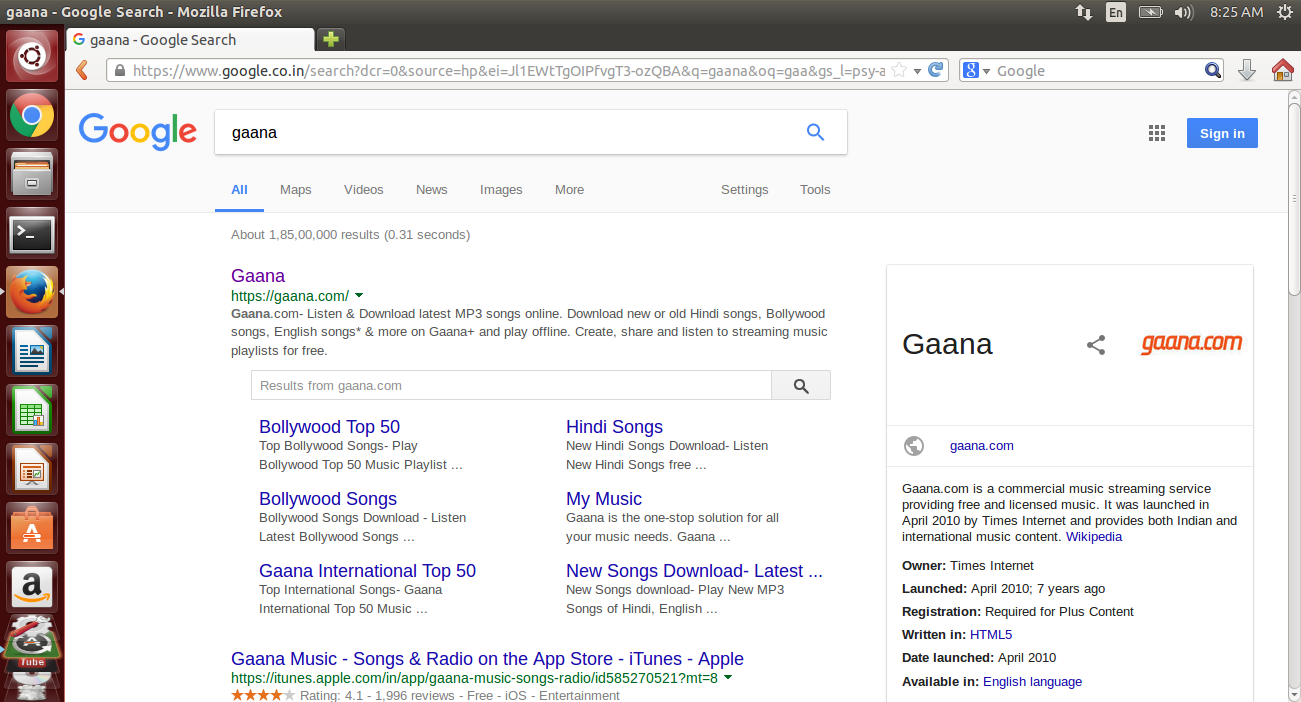

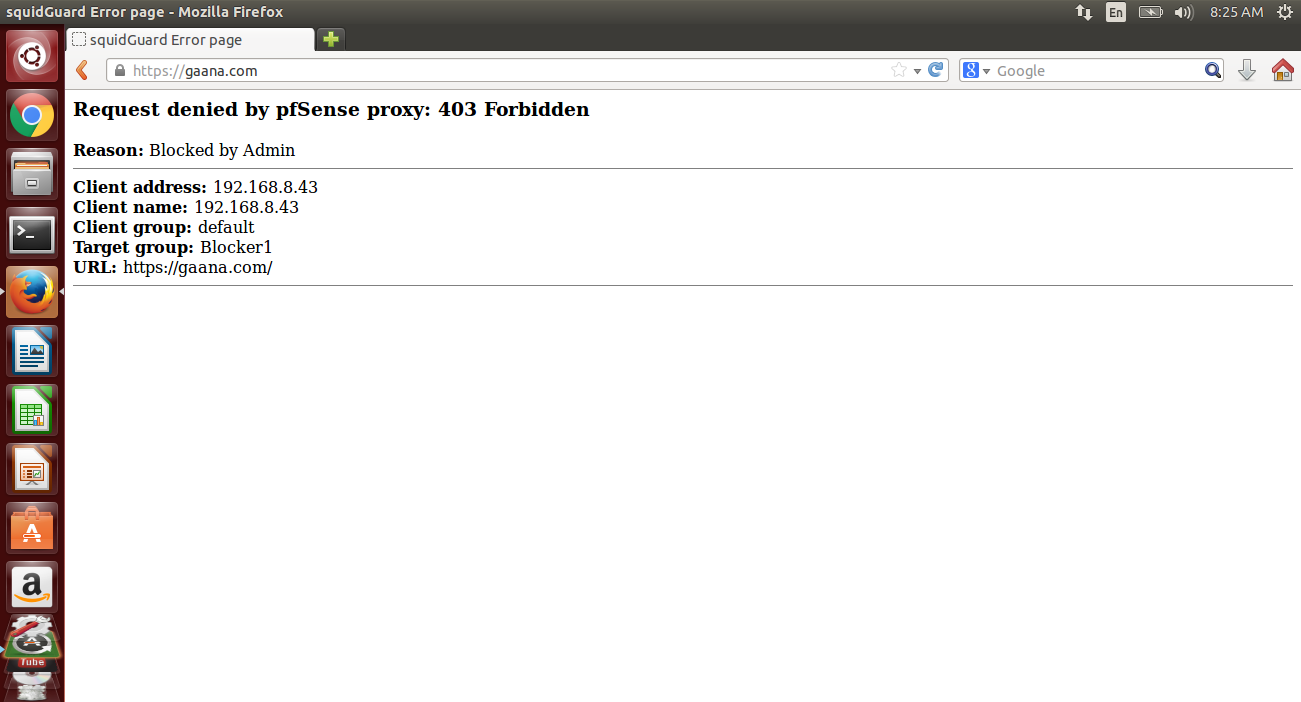

Now open the domain which you have been blocked and check it.
