Using HTML and CSS in Titanium
Posted By : Ajit Jati | 09-Sep-2013
There are frames of time when we need to design webviews inside Titanium made App.In Order to make these views more user friendly and attractive we would like to use HTML and CSS in the web elements.So this blog guides you to learn and build a simple Titanium App using HTML and CSS.
# Steps
- create a simple Ti classic App.
- Replace the app.js with the following code.
var isAndroid = (Ti.Platform.osname === 'android');
var windowView = Ti.UI.createWindow({
top : 0,
layout : "vertical",
width : '100%',
height : Ti.UI.SIZE
});
var bodyView = Ti.UI.createScrollView({
top : 0,
layout : "vertical",
width : '100%',
height : '100%',
});
var webView = Ti.UI.createWebView({
height : Ti.UI.SIZE,
backgroundColor : "transparent",
top : 0,
});
bodyView.add(webView);
var buttonContinue = Ti.UI.createButton({
top : 20,
bottom : 20,
width : 150,
height : 40,
title : "CONTINUE",
color : "black",
font : {
fontSize : 14
},
});
bodyView.add(buttonContinue);
windowView.add(bodyView);
var setContent = function(content) {
var htmlTemplate = Ti.Filesystem.getFile(Ti.Filesystem.resourcesDirectory, 'html', 'nextSteps.html');
var cssTemplate = Ti.Filesystem.getFile(Ti.Filesystem.resourcesDirectory, 'html', 'css.css');
var css = cssTemplate.read().text;
var html = htmlTemplate.read().text;
var contentText = content.read().text;
html = html.replace("#css#", css);
html = html.replace("#content#", contentText);
webView.html = html;
};
buttonContinue.addEventListener('click', function() {
var content = Ti.Filesystem.getFile(Ti.Filesystem.resourcesDirectory, 'html', 'detailsBody.html');
setContent(content);
});
windowView.open();
- Now create css.css, detailsBody.html and nextSteps.html file inse a folder called content.
css.css
body {
margin: 0;
padding: 0;
-webkit-text-size-adjust: none;
font-family: "Helvetica Neue", Helvetica, Arial, Verdana, sans-serif;
font-size: 16px;
line-height: 1.5em;
}
p {
margin: 0px;
margin-bottom: 8px;
}
#headerBar {
background-color: #1a1a1a;
color: white;
height: 60px;
font-size: 16px;
}
#headerIcon {
height: 75px;
width: 55px;
float: left;
}
#headerIcon img {
height: 55px;
}
#description {
background-color: #1a1a1a;
color: #b1b1b1;
padding: 11px 10px 15px;
}
#description b {
color: white;
}
#contentBody {
padding: 1px 1px;
background-color: #d4d4d4;
}
#contentBody span {
font-weight: bold;
}
.fullWidth {
margin: -15px -10px 0 -10px;
text-align: center;
}
.fullWidth img {
width: 100%;
}
detailsBody.html
<h4><font color = "red"> About Our Company:</font></h4> <p> Oodles Technologies is a digital marketing and technology service company with focus on providing development services using latest innovative technologies effectively. </p> <p> Oodles Technologies provide development services that complement open-source BigData platforms like <font color = "green">Hadoop , MongoDB , HBase and Mahout</font> </p> <p> <h4><font color = "red">Our Specialization</font><font color = ""></h4> </p> <ul> <li> BigData & NoSQL </li> <li> Video Content </li> <li> Mobile Applications </li> <li> SaaS Applications </li> </ul>
nextSteps.html
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd"> <html lang="en"> <head> <meta http-equiv="Content-Type" content="text/html; charset=utf-8"> <meta name="viewport" content="width=device-width, minimum-scale=1.0, maximum-scale=1.0" /> <title>Help and Information</title> <style type="text/css"> #css# </style> </head> <body> <div id="headerBar"> <div id="headerIcon"> <img src='images/logo.png' /> </div> </div> <div id="contentBody"> #content# </div> </body> </html>
The nextSteps.html defines the structure of the html page and the app.js manipulates these contents

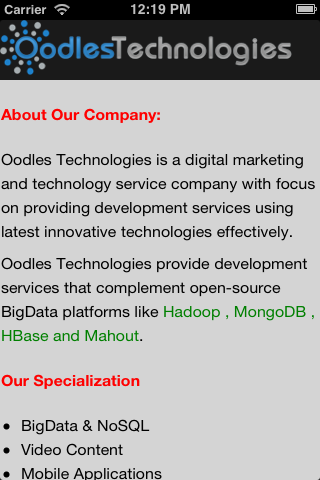

And the webpage which will show up in our Ti App
You can customize your html pages with more css experiments. Hope it helps. Cheers !! Download sample code
