How To Create Your Own Marker For AR Js
Posted By : Pawanpreet Singh | 31-Oct-2018
Here we will discuss how to create your own marker for AR js, As you know AR js is a javascript library use for creating an application with the capability of Augment Reality. But it relies on marker meaning we have to define a pattern on which we want to Augment the things, By default, this library use HIRO marker and there are several other inbuilt markers like kanji, but if you want to use your own pattern you can follow the below steps:
Following are the requirement for creating your own marker for AR js
1. AR.js (https://github.com/jeromeetienne/AR.js)
2. marker-generator (https://jeromeetienne.github.io/AR.js/three.js/examples/marker-training/examples/generator.html)
3. Image of marker preferably square and in black and white colors, In this example, have used the image as shown below.
To generate your own marker
1. Go to the marker generator website.
2. Upload marker there.
3. click on Downoad Marker and Download Image, save both things in a location.
4. Our generated Marker image is as shown below and you can use my marker from here.
Use generated marker in our AR js application
1. Upload marker to a location on web and copy its path.
2. To use marker in AR js application you have to define the following line.
<a-marker preset="pattern" type="pattern" url="[web location of generated pattern]">
3. Your code will looks something like as shown below
<html> <script src="aframe.min.js"></script> <script src="AR.js/aframe/build/aframe-ar.js"> </script> <a-scene > <a-sky color="#87cefa"> <a-animation attribute="color" dur="10000" from="#87cefa" to="#1e90ff" repeat="indefinite"></a-animation> </a-sky> <!-- Basic plane. --> <a-marker preset="pattern" type="pattern" url='https://s3.amazonaws.com/oodles-blogs/blog-images/495e139a-0a49-474f-ab3c-476cbcc9bbc8.null'> <a-plane color="#c2b280" height="5" width="5" rotation="-90 0 0"></a-plane> <a-torus color="green" radius="0.4" position="-1.5 0 -1" rotation="-90 0 0"></a-torus> <a-cylinder color="brown" height="2" radius="0.03" position="-1.5 0 0" rotation="-90 0 0"></a-cylinder> <a-torus color="green" radius="0.4" position="1.5 0 -1" rotation="-90 0 0"></a-torus> <a-cylinder color="brown" height="2" radius="0.03" position="1.5 0 0" rotation="-90 0 0"></a-cylinder> <a-text color="red" value="Pawanpreet Singh" width="5" position="-1.3 0 -2" rotation="-90 0 0"></a-text> <a-text color="blue" value="Oodles Technologies" width="5" position="-1.2 0 0" rotation="-90 0 0"></a-text> </a-marker> <a-entity camera></a-entity> </a-scene> </html>

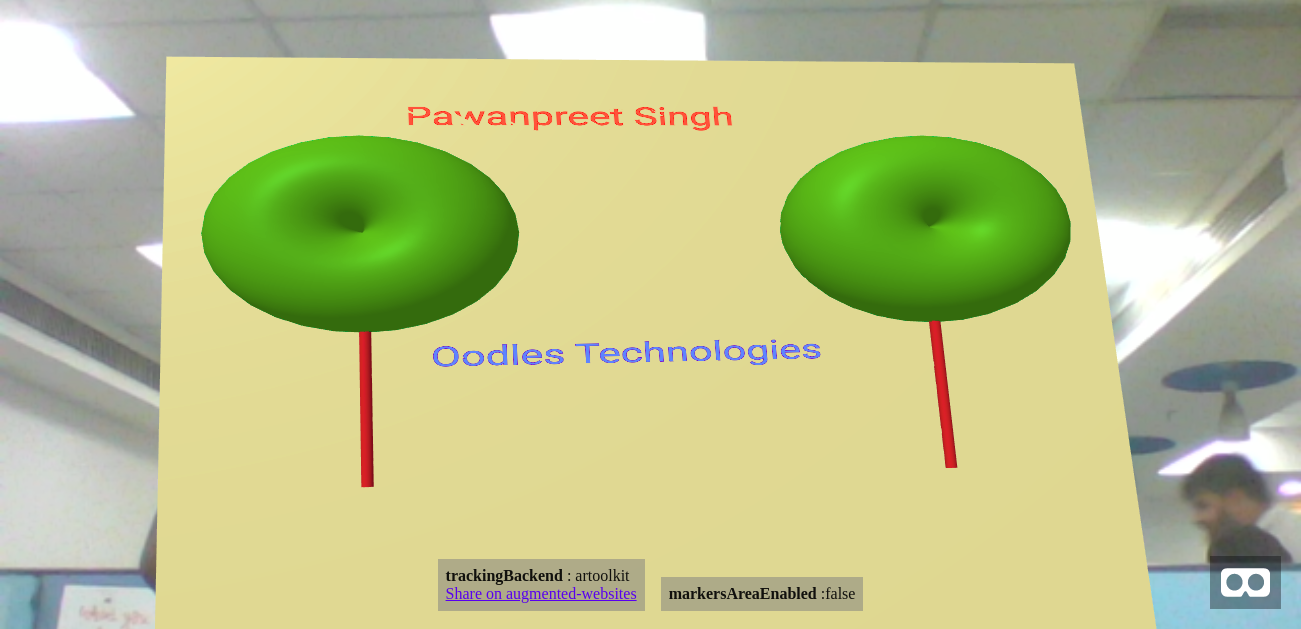

4. Code shown here will generate the following result if shown below marker.
Hope you enjoyed my post.
